Precision Micro-Pressure Welding Head MF280RS

The MF280RS is a kind of spot welding head which can precisely control the welding pressure and is developed based on the requirements on such processes as enameled wire welding, thin sheet metal welding and plastic column hot-riveting in the industry of precision electronics.

It is suitable for application scenarios such as high welding quality requirements, thin plating, substrates with poor temperature resistance and FPC substrates. The pressure feedback system is available for selection.
The lever balance principle is adopted for constant pressure output, the drive screw is controlled by the stepping motor to carry out precise pressure adjustment, and the pressure sensor of integrated design is adopted to measure each welding pressure in real time.

Back to List

Features and Advantages

Micro pressure control, precise adjustment and stable pressure; minimum pressure of 40g and minimum index setting of 1g.

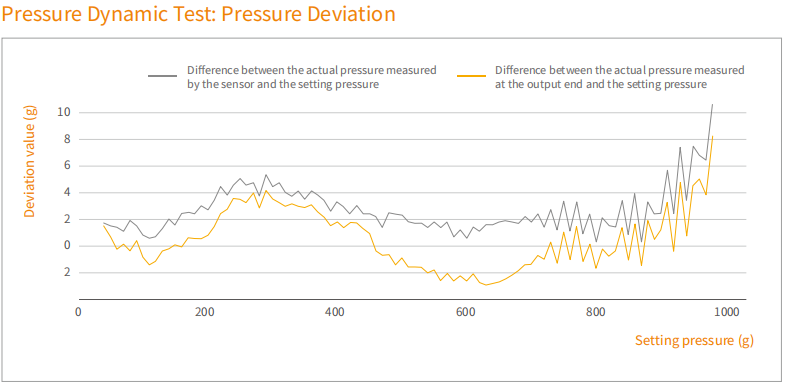

Stable pressure and control precision up to ±2%FS to effectively ensure product consistency.

Each welding pressure is monitored and recorded, and an alarm is given when the pressure limit is exceeded.

Compact and lightweight, enabling flexible integration into automatic production lines.

Supporting standard MODBUS-RTU communication protocol.

Technical Specifications

Model		MF280RS
Control parameters	Pressure range	40-1000g
	Control precision	40-300g（±6） 300-1000g（±2%FS）
	Min. index setting	1g
	Pressure setting	Button + LCD
Parameters of spot welding head	Motion control method	Stepping motor
	Max. stroke of spot welding head	10mm
	Trigger method	Photoelectric switch
	Dimensions (WDH)	20080215mm (With welding head clip)
	Weight	2.3kg
